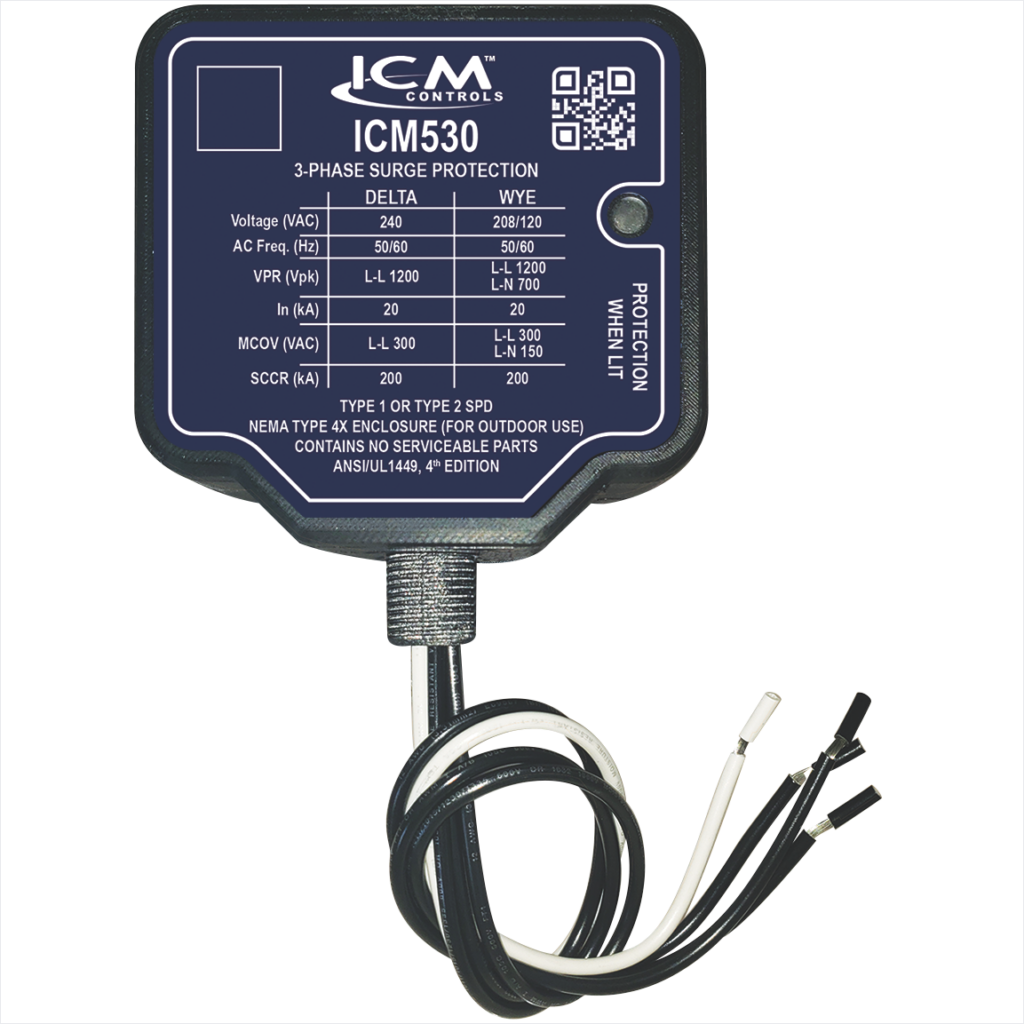

3-Phase Surge Protective Device
The ICM530 Series is 2 models of Type 1 and Type 2 three-phase Surge Protective Devices for three-phase Delta and three-phase Wye configurations.
When a surge occurs, the ICM three-phase surge suppressor will absorb the surge up to the specified limitations of the device. ICM incorporates superior thermally protected metal oxide varistor technology into the three-phase surge suppressors, which allows for safe disabling of the surge elements when a surge exceeds the thermal limits of the device. There is a single status light on the controls which identifies operational status when illuminated.
The ICM 3-phase surge suppressors can be installed as a Type 1 or Type 2 device for both indoor and outdoor applications.
- 3-Phase Surge Protective Device
- Delta or Wye 120/208 VAC Configuration
- NEMA Type 4X watertight plastic enclosure for outdoor and indoor installation
- Green LED indicates surge protection present
- Easily connects to electrical panel or disconnect for indoor and outdoor applications
- UL Listed Type 1 or Type 2 SPD
- Limited lifetime product, up to a 3-year $10,000 connected equipment warranty
Input:
- SPD Type: Type 1 (can also be used in Type 2 applications)
- Input Power Frequency: 50/60 Hz
Electrical:
- Service Voltage (3-Phase): 240 VAC Delta or 120/208 VAC Wye
- Short Circuit Current Rating (SCCR): 200 kA
- Nominal Discharge Current (In): 20kA
- Maximum Surge Current: 150,000 amps
- Protection Mode:
- 3 for Delta configuration
- 6 for Wye configuration (neutral tied to ground)
- Surge Protection Technology: TFMOV
- L-L: 300 VAC
- L-N: (for Wye configuration only): 150 VAC
VPR:
- Delta L-L: 1200 VAC
- Wye L-L: 1200 VAC
- Wye L-N: 700 VAC
Weight/Dimensions
- Length: 4.30”
- Width: 4.10”
- Height: 2.30”
ABB: OVRHLDxx-120
ASCO: 420120Y, 420240D
Eaton: SP1-208Y, SP1-240D, SP2-208Y, SP2-240D
ERICO (Critec): TDX50C120/208, TDX50C120/240D
Intermatic: AG2083C3, L5F13Y1DG1
Leviton: 55208-ASA
Siemens: TPS3D, TPS3C
Square D: SDSA2040, SDSA2040D
