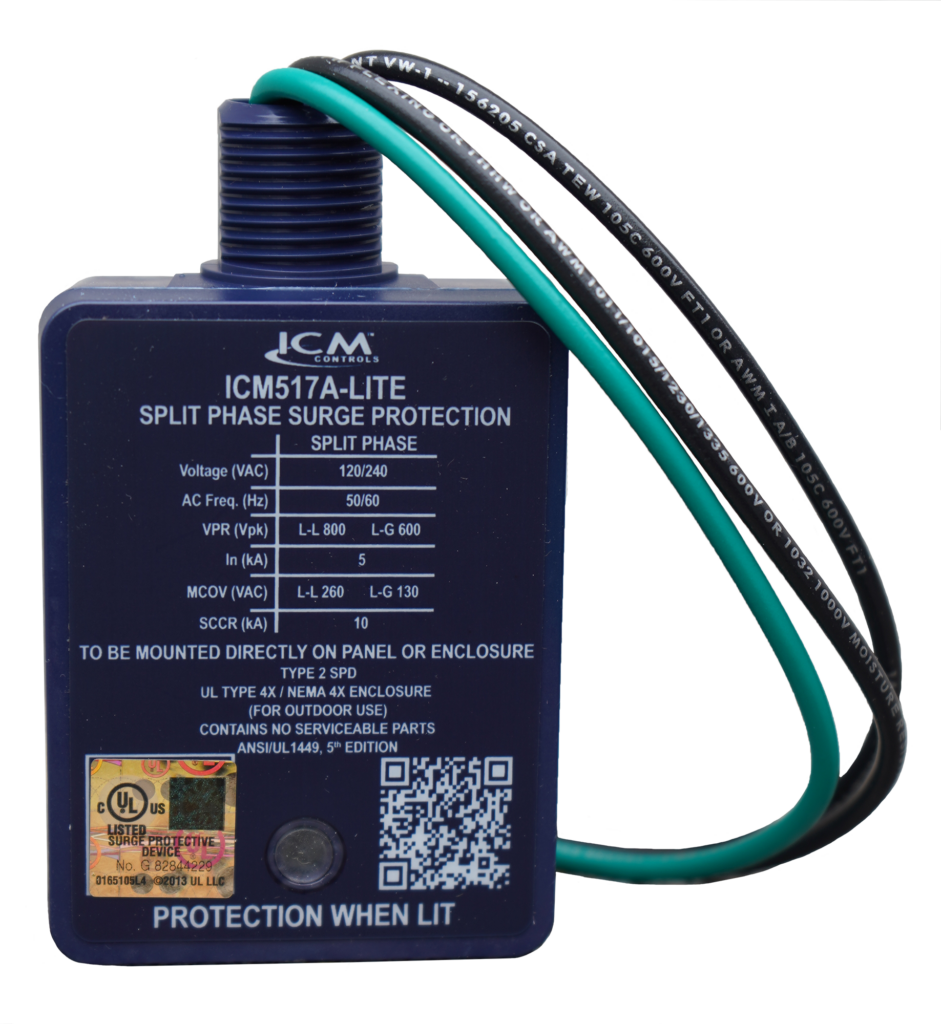

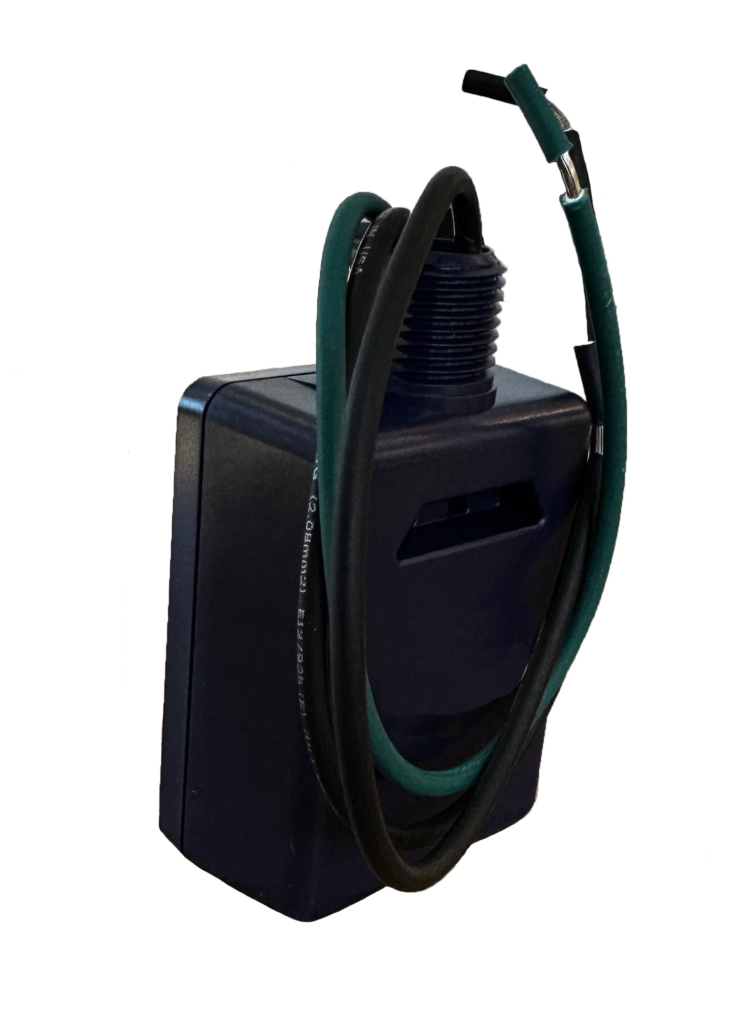

Single-Phase Surge Protection Device
The ICM517A-Lite is a compact Type 2 Surge Protective Device (SPD) designed to protect valuable single-phase equipment by dissipating momentary voltage spikes and transient power surges. Providing commercial property owners with peace of mind, contractors with a reliable selling proposition and wholesalers with a high demand product. Applications include the protection of motors, electronics, air conditioning systems, appliances, refrigeration, HVAC equipment and more.- Superior TMOV technology provides safe and reliable surge protection
- Built to withstand the high impact of a major surge event
- Ultrasonically welded enclosure for indoor/outdoor installation
- Featuring a thinner more compact profile
- Maximum surge capacity of 60,000 amps
- Easy-to-read status light, tells you when the control is protecting
- Easy installation
- Designed and assembled in U.S.A.
- UL 94 V-0 flammability rating
- UL Listed: E347279
- Limited lifetime product up to a 3-year $25,000 connected equipment warranty
Electrical:
- Service Voltage: 120/240 volt, single-phase
- Maximum Surge Current: 60,000 amps
- Maximum Energy Dissipation: 612 joules
- SCCR: 10kA
- Installation Point: Electrical panel, electrical disconnect
- Diagnostics: Green light indicates surge suppression present
- Enclosure: NEMA Type 4X waterproof enclosure
- AC Protection Modes: L-L, L-G
- Conduit Connection: 1/2” trade size
Weight/Dimensions
- Length: 3.75”
- Width: 2.25”
- Depth: 1.02”
