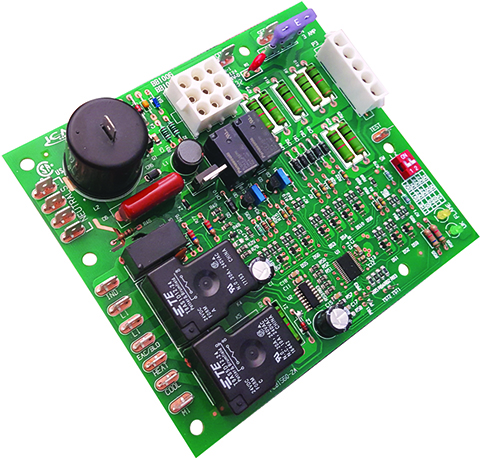

The ICM2906 is a low-cost microprocessor-based replacement control that monitors timing, trial for ignition, system switches, flame sensing and lockout. A functional replacement for Reznor: 195573.
Direct Spark Ignition (DSI) control board
Cooling and heating fan outputs
Microprocessor-based
Controls inducer motor, blower motor, air cleaner (if equipped), spark igniter & gas valve
Monitors timing, trial for ignition, system switches, flame sensing and lockout
Compatible with LP or natural gas
LED indication for status and fault codes to aid in troubleshooting
Input
Voltage
- 18-30 VAC
Frequency
- 60 Hz
Outputs
Inducer Blower
- Type: Relay
- Rating: 1/6 HP @ 125 VAC
Gas Valves
- Type: Relay
- Rating: 1A @ 24 VAC
Heat Blower
- Type: Relay
- Rating: 1/4 HP @ 125 VAC
Cool Blower
- Type: Relay
- Rating: 1 HP @ 125 VAC
Environmental
Operating Temperature
- -40°F to 165°F (-40°C to 74°C)
Mechanical
Dimensions
- 5" X 5.75"
Reznor
- 195573
