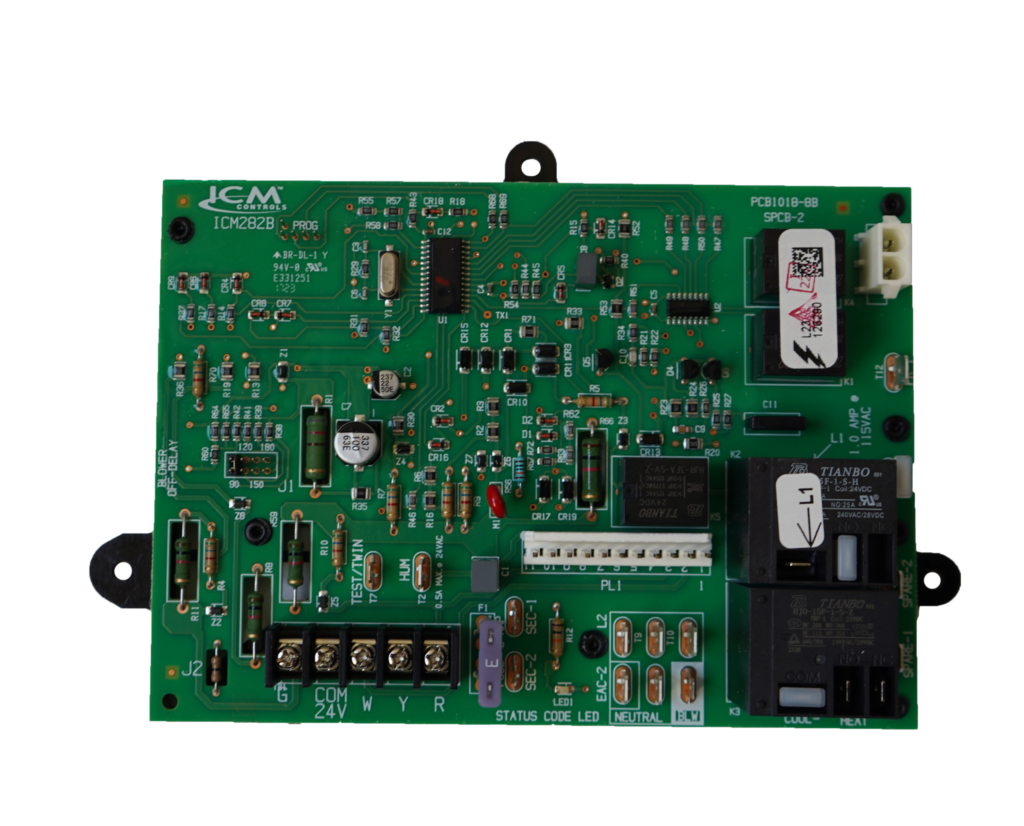

Furnace Control Board
The ICM282B is a popular, low cost, OEM replacement furnace control for the Carrier HK42FZ034, HK42FZ004/007/008/009/011/013/016. It controls gas valve, ignitor, blower motor, inducer, humidifier and air cleaner.- Popular replacement for Carrier HK42FZ004/007/008/009/011/013/016/034
- Controls gas valve, ignitor, blower motor, inducer, humidifier and air cleaner
- Microprocessor-based
- Designed for 100% gas shutoff in case of ignition failure
- Twinning compatible with other ICM282B boards
- Reverse polarity protection
- Secondary brownout voltage protection
- Compatible with a 24 VAC standard thermostat
- Provides diagnostic LED to aid in troubleshooting
Electrical
- Voltage Range: 120 VAC @ 60 Hz
- Ignitor: 5A resistive @ 120 VAC
- Cool Blower: 13.8 FLA, 82.8 LRA @ 120 VAC
- Heat Fan: 13.8 FLA, 82.8 LRA @ 120 VAC
- Inducer Fan: 1/10 Hp @ 120 VAC
- Gas Valve: 16VA pilot duty @ 24 VAC
- Humidifier: 1A resistive @ 120 VAC
- Electric Air Cleaner: 1A resistive @ 120 VAC
Weight/Dimensions
- Weight: 0.55 lb.
- Height: 1.5″
- Width: 8″
- Length: 5″
Carrier: CEBD431012-01A, CEPL131012-01, HK42FZ004, HK42FZ007, HK42FZ008, HK42FZ009, HK42FZ011, HK42FZ013, HK42FZ016, HK42FZ034 and 325878-751
