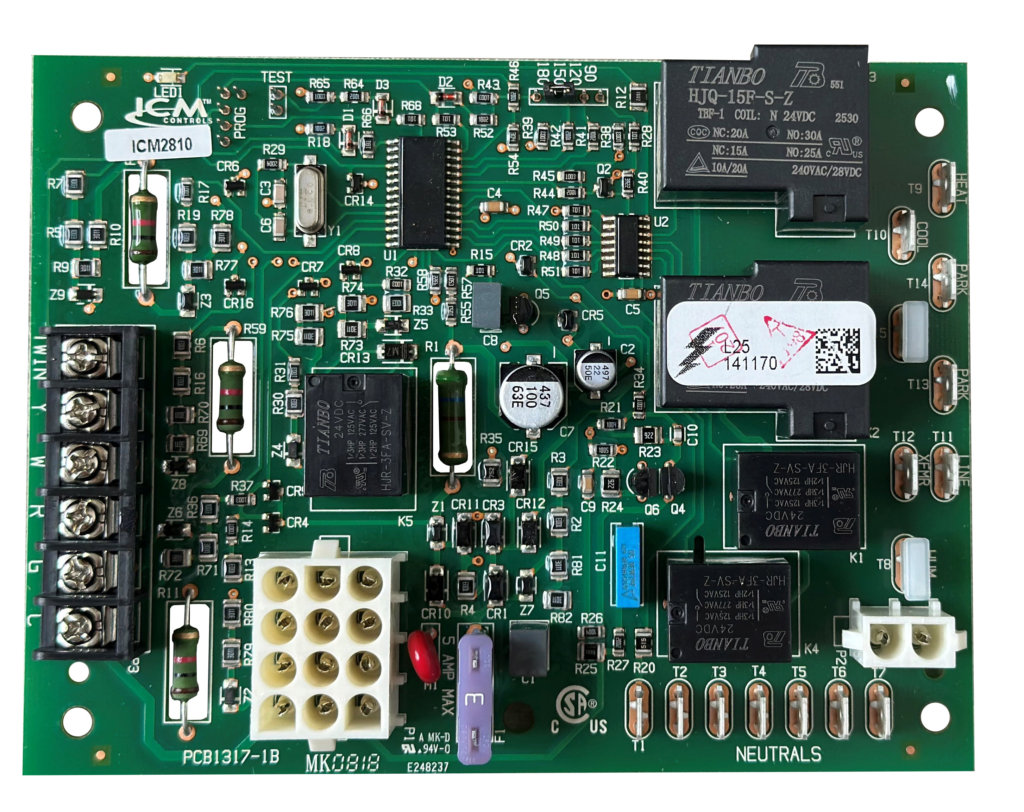

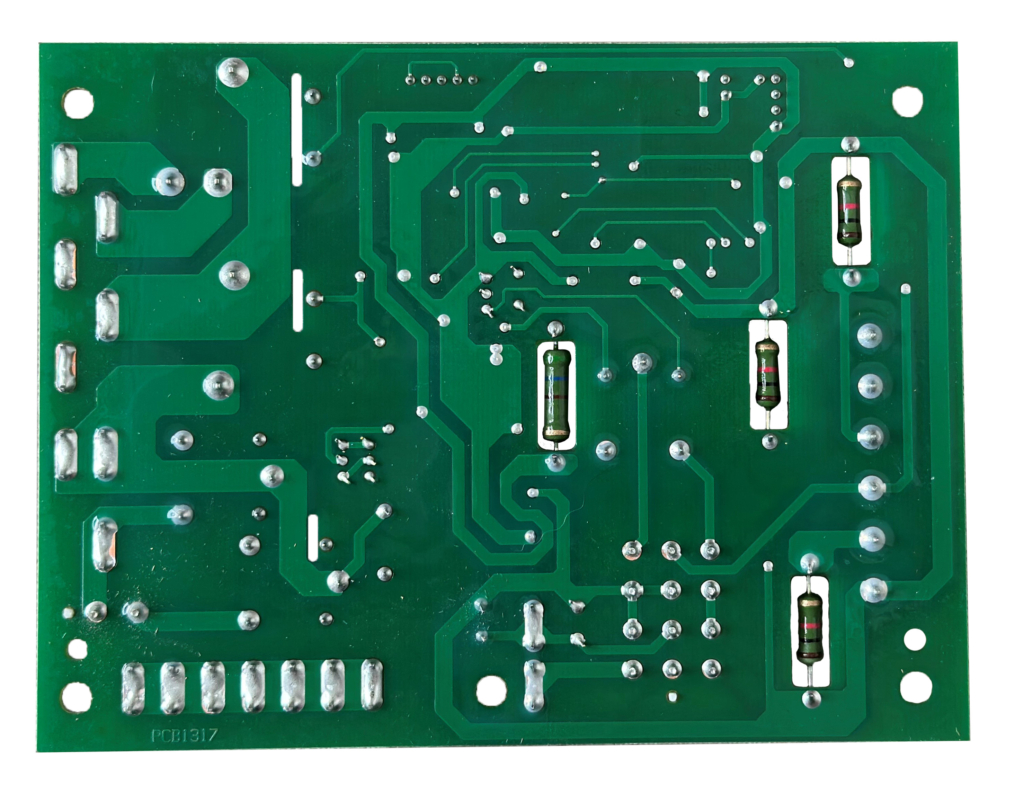

Goodman OEM Replacement Control
The ICM2810 is a low-cost replacement for the Goodman PCBBF136 and PCBBF140 furnace control boards which is used to control gas valve, ignitor, blower motor, inducer, humidifier and air cleaner.- Low cost, Goodman replacement board
- Microprocessor-based precision
- Controls inducer and blower fan motors, hot surface igniter, and gas valve
- Monitors timing, trial for ignition, flame sensing, pressure switches, limit switches
- Designed for 100% gas shutoff in case of ignition failure
- Reverse polarity protection
- Compatible with 24 VAC standard thermostat
- Twinning compatible with another ICM2810 control board
- Compatible with LP or natural gas
- Provides diagnostic LED to aid in testing/troubleshooting
Timing:
- Inducer Pre-purge Time: 15 seconds
- Heat Blower ON Delay: 30 seconds
- Heat Blower OFF Delays: 90/120/150/180 seconds
- Cool Blower ON Delay: 5 seconds
- Cool OFF Delay: 45 seconds
- Ignitor ON: 18 seconds
- Inducer Post Purge: 15 seconds
- Trials for Ignition: 3 (before soft lockout)
- Auto Reset: 60 second
Electrical:
- Voltage Range: Line (98-132 VAC) @ 60Hz
- Cool Blower: 30A, 2 HP, 240 VAC
- Heat: 20A, 240 VAC
- Inducer Motor: 4A FLA, 8A LRA @ 120 VAC
- Ignitor: 10A FLA @ 120 VAC
- Humidifier: 5 amps @ 120 VAC
- Electric Air Cleaner: 5 amps @ 120 VAC
Environment:
- Ambient Temperature
- Operating: -40ºF to 176ºF
- Storage: -40ºF to 185ºF
- Humidity: 5% to 95% R.H. (non-condensing) @ +55ºF
- Vibration: 13.8Hz @ 0.2 Gs for one hour in each orthogonal axis
Weight/Dimensions
- Weight: 0.5
- Height: 1
- Width: 6
- Length: 4.5
Replaces:
Goodman: PCBBF136, PCBBF140
