Low-Cost Form, Fit and Functional Replacement Board

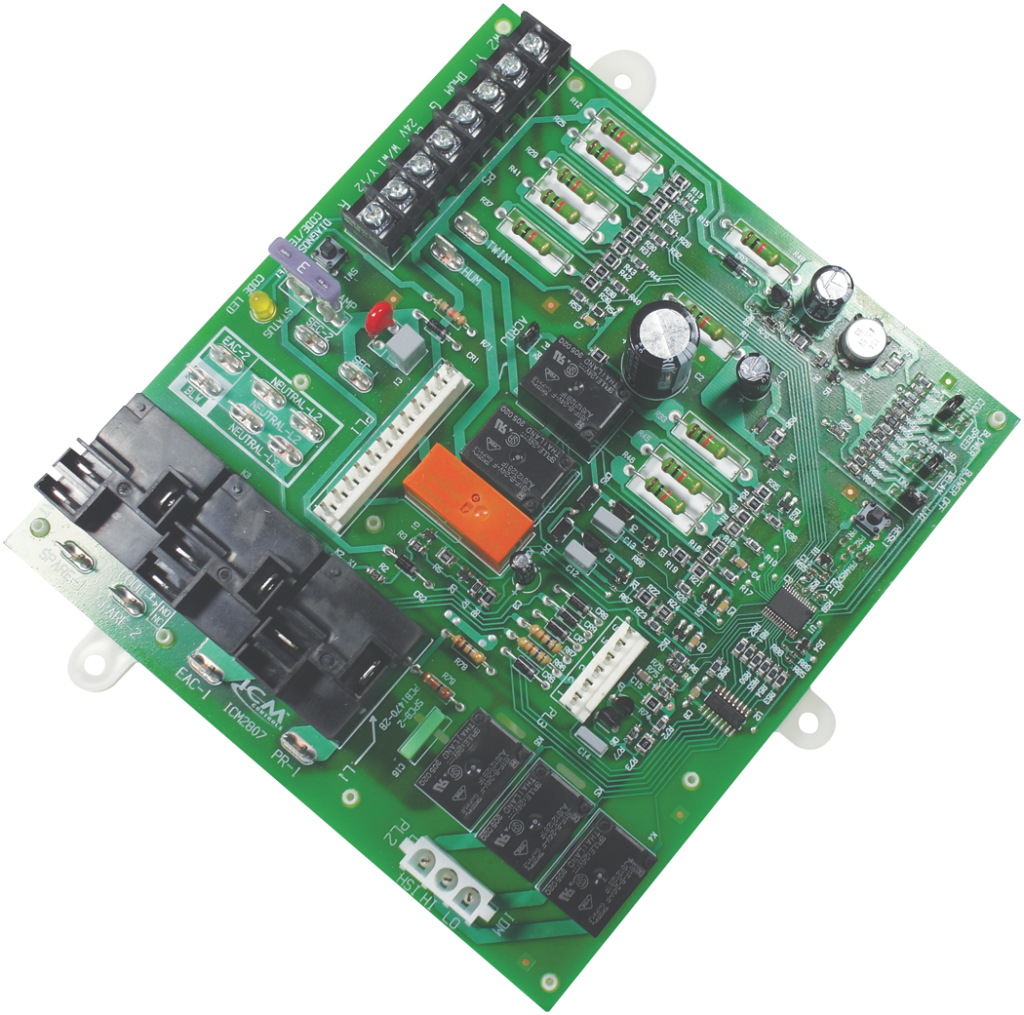

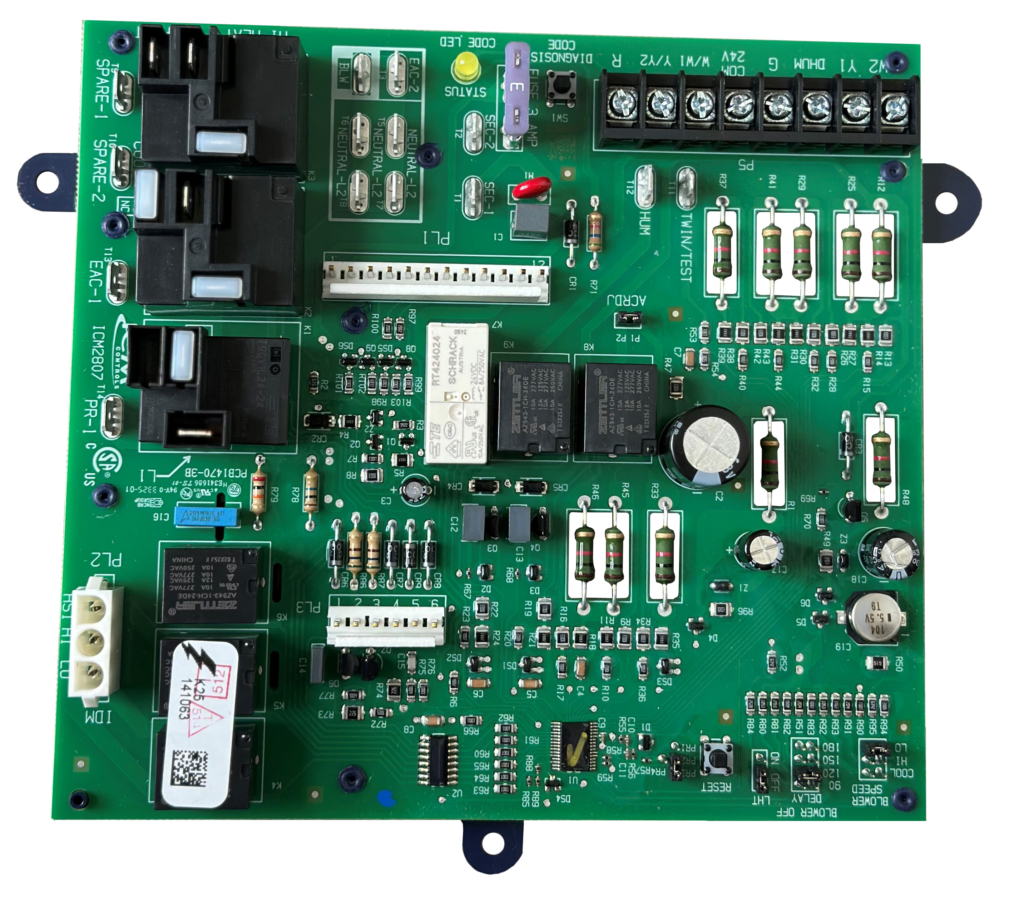

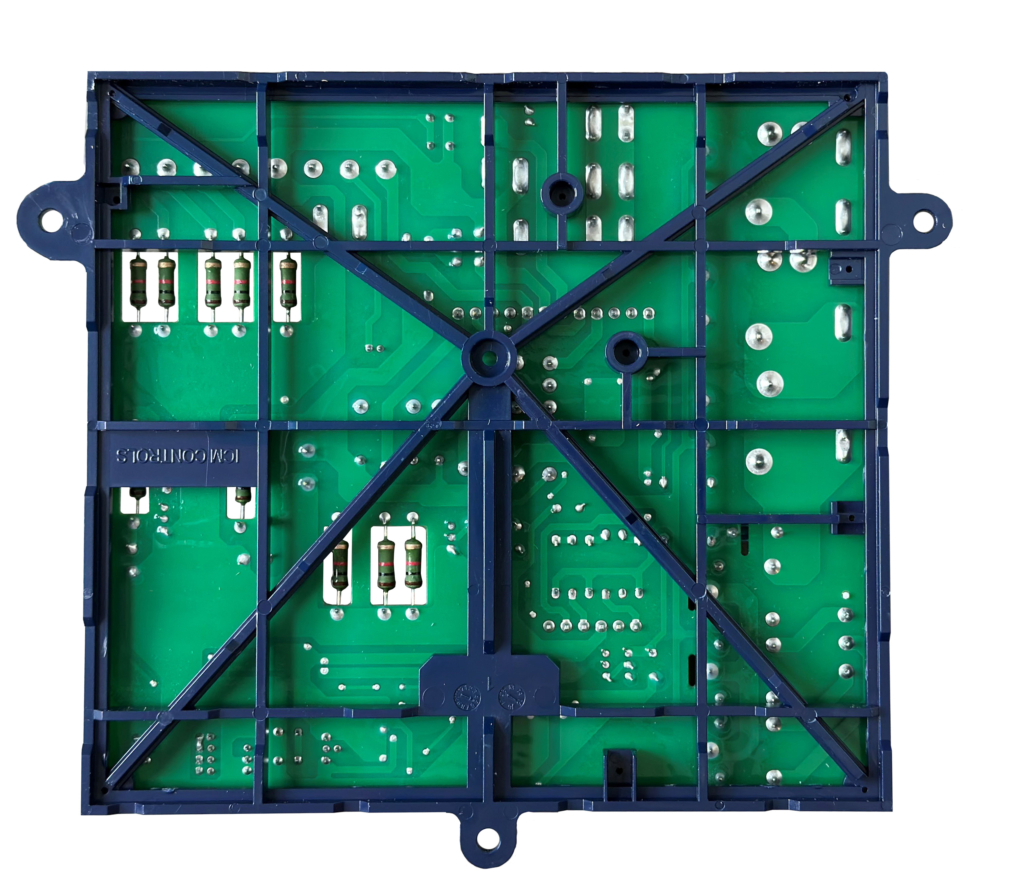

The ICM2807 is a low-cost replacement for the Carrier HK42FZ017 furnace control board, which is used to control gas valve, ignitor, blower motor, inducer, humidifier and air cleaner- Microprocessor-based precision
- Designed for 100% gas shutoff in case of ignition failure
- Twinning compatible with another ICM2807 control
- Reverse polarity protection
- Secondary brownout voltage protection
- Compatible with 24 VAC standard thermostat
- Continuous Blower Speed Jumper
- Limit Switch Lockout Time
- Limit Switch Lockout After Power Interruption
- Self-Diagnostics
- Provides diagnostic
Electrical
- Voltage Range: Line (98 to 132 VAC) @ 60 Hz
- Ignitor: 5A @ 120 VAC
- Cool Blower: 10 HP, 120 VAC
- Low Heat: 5A, 1/2 HP, 120 VAC
- High Heat: 10A, 1 HP, 120 VAC
- Inducer Motor: 4A, FLA-8.0 LRA @ 120 VAC
- Gas Valve: 1.5A @ 30 VAC
- EAC: 1A @ 120 VAC
- Humidifier: 0.5A & 24 VAC
Ambient Temperature
- Operating: -40°F to 176°F
- Humidity: 5% to 95% R.H. (non-condensing) @ +55°F
Weight/Dimensions
- Weight: 1 lbs.
- Height: 1.5″
- Width: 6.5″
- Length: 7″
Carrier: HK42FZ017
