Low-Cost, Form, Fit and Functional Replacement Board

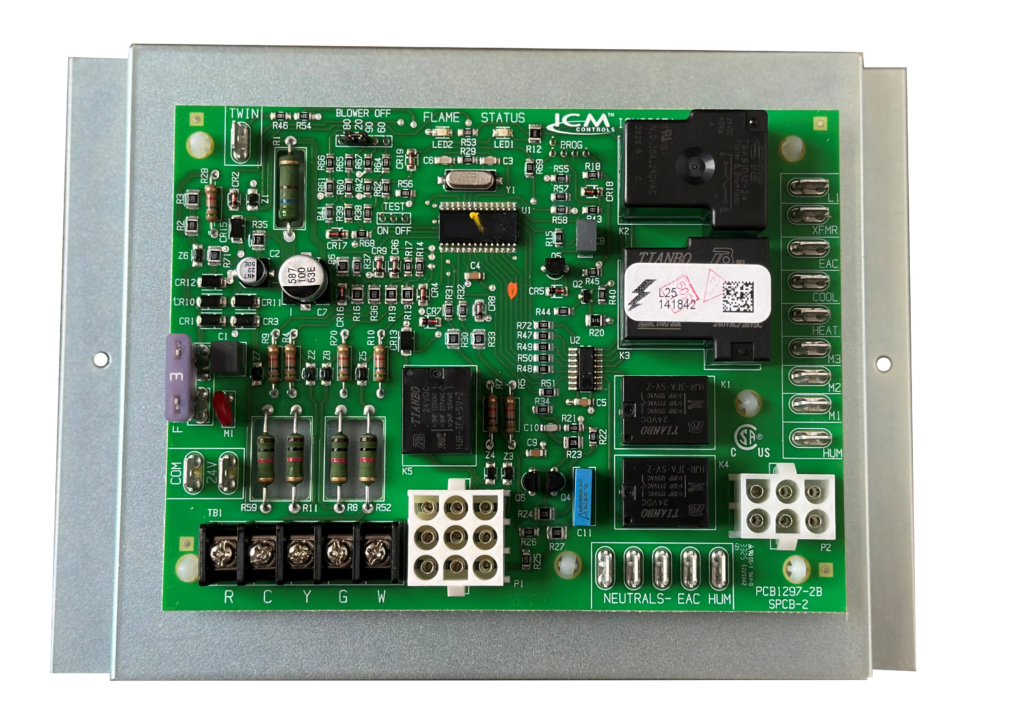

The ICM2805A is a low-cost replacement for Nordyne 624631 furnace control board which is used to control gas valve, inducer draft motor, circulating blower and hot surface ignitor.- Low-cost, form, fit and functional OEM replacement control board for Nordyne: 624631
- For use with G3, G4, G5, G6, M2 and M3 furnace modules
- Controls gas valve, inducer draft motor, circulating blower and hot surface ignitor
- Monitors timing, trial for ignition, flame sensing, lockout, plus pressure, rollout and limit switches
- Microprocessor-based precision
- Twinning compatible with another ICM2805A furnace control
- Diagnostic LEDs aid in testing and troubleshooting
Line Voltage Range: 120/240 VAC @ 60 Hz
Ignitor: 5A, 120 VAC
Cool Blower: 10A, 2HP, 240 VAC
Heat: 5A, 1/2 HP, 250 VAC
Inducer Blower: 4A, 120 VAC
Gas Valve: 1A, 24 VAC
Humidifier Motor: 0.5A, 24 VAC
Electronic Air Cleaner: 1A, 120 VAC
Weight/Dimensions
- Weight: 0.4
- Height: 1.5
- Width: 6
- Length: 4.5
Replaces:
Nordyne: 624631, 624631B (for use with G3, G4, G5, G6, M2 and M3 furnace modules)
