3-Phase Voltage Monitoring and Surge Protection

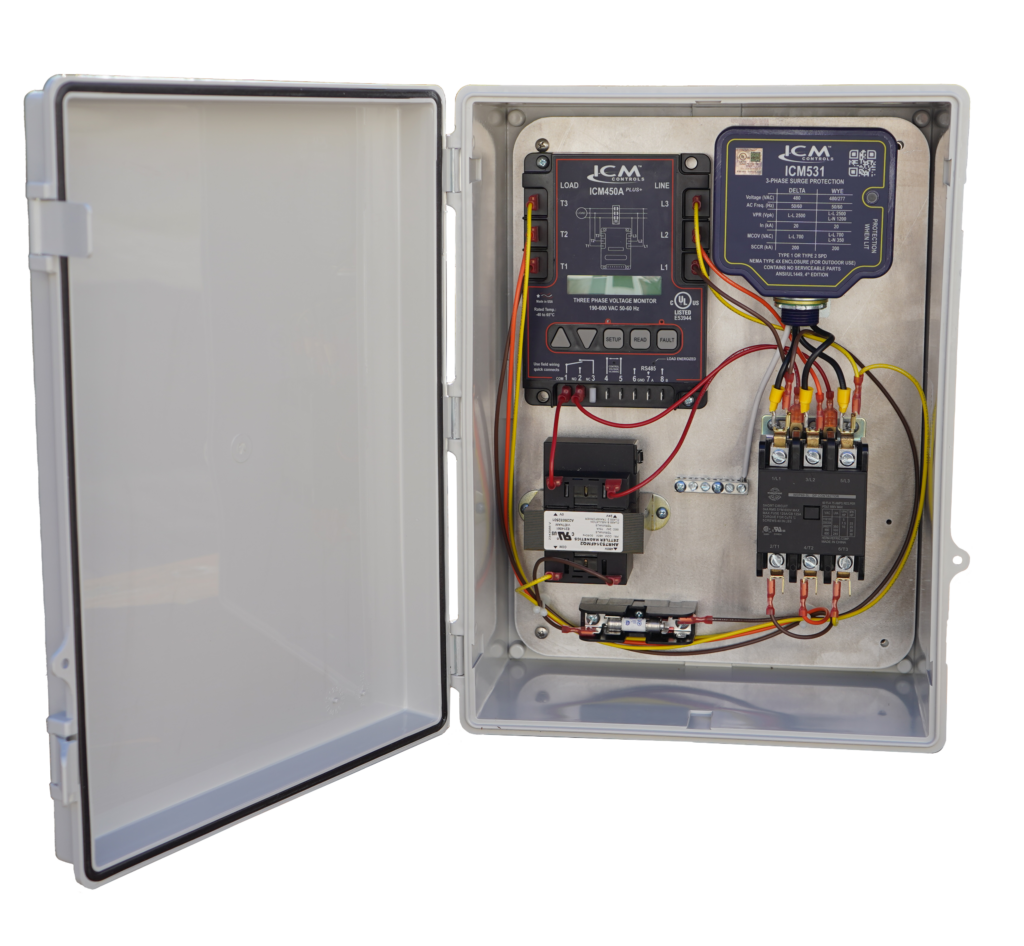

The 3VMS combines the benefits of the ICM450A PLUS+ programmable 3-phase line voltage monitor and a ICM531 type 1 and type 2 three-phase Surge Protective Device (SPD) into one easy-to-install solution. The 3VMS protects against both power surges and over/under voltage issues that can cause damage to circuit boards and motors in residential and commercial three-phase 480VAC HVAC/R equipment.- All Components pre-wired for 480VAC
- Modular design with field replaceable components
- Field programmable voltage monitor with backlit LCD display and large fault history
- Protects against over and under voltage, phase loss, phase reversal, phase unbalance and rapid short cycling
- Real time clock for date and time stamp of fault events
- Separate 3-pole, 60amp contactor, fully disconnects from the service
- Superior TMOV technology provides safe and reliable surge protection, up to 150kA max surge event
- Built to withstand the high impact of a major surge event
- NEMA 4X Rating
- Limited lifetime product warranty up to a 3-year $10,000 connected equipment warranty.
Input
- Frequency: 50/60 Hz
- Nominal voltage: 480VAC
- Operating voltage: 400 -525VAC
- SCCR: 5kA
Output
- Contactor: 60A FLA, 480VAC
Surge Protection
- Max Surge Protection: 150,000 amps
Weight/Dimensions
- Weight: 13 lb.
- Length: 15.7″
- Width: 11.7″
- Depth: 6.3″
