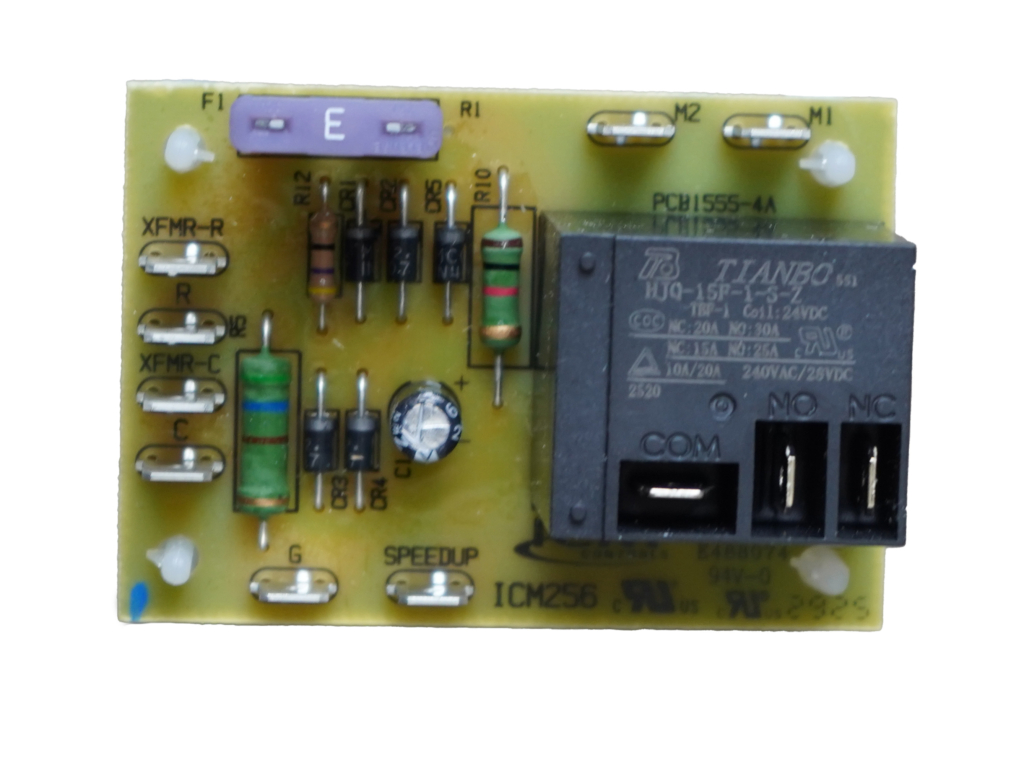

Post Purge Fan Timer
Fan post purge timer to control circulating fan in forced air systems.- Dual function fan delay timer
- Controls the circulating fan in forced air systems
- Off delay purges duct of residual air
- On delay allows air to reach proper comfort level prior to energizing the fan
Input:
- Voltage: 18-30 VAC
- Frequency: 50/60 Hz
Output:
- N.O.: 25 amps @ 240 VAC
Fixed Time Delays:
- On: 7 seconds
- Off: 65 seconds
Weight/Dimensions
- Weight: 1
- Length: 2.00″
- Width: 2.85″
- Height: 2.0″
Replaces:
Goodman: PCBFM-103
